Honeycomb Storage Systems from EBIL TECH

Perfect for anyone looking for an efficient storage system for large quantities of long goods and sheet metal.

Fast, economical, custom-made.

Automatic Honeycomb Storage Systems

- Compact construction for efficient storage density

- Electromechanical construction of the push/pull unit of the storage and retrieval system

- Quick change of material at the operating stations

- Combined system for the storage of long goods and sheet metal

- Modular construction of all components

- Reduced material handling due to integrated conveyor technology/handling systems

- Intuitive operation

Convincing results

- 60 % reduction of storage space

- 75 % time savings during material handling

- 100 % planning certainty due to intelligent inventory management

- 100 % future-proof thanks to a modular system that grows with your requirements

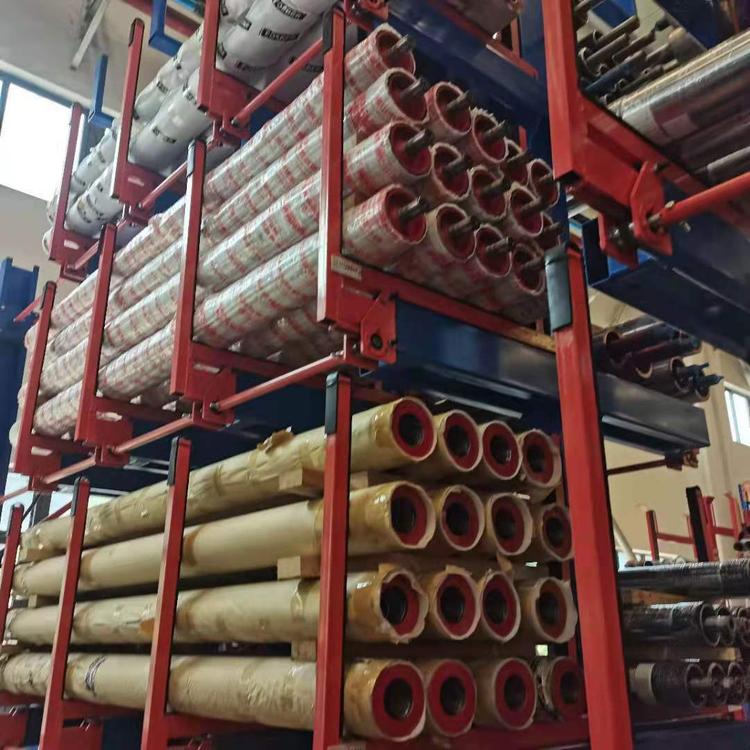

Standard Honeycomb Rack

- Roll Out Honeycomb Rack is such a long pipe storage rack, when your long metal pipe raw material storage hope to effectively use

- the aisle space, to achieve the maximum stock demand. The product to be the best choice . It is specially designed for metal pipe

- warehouse, dedicated to the rapid access of metal pipes and rods. It is a pipe storage rack that supports customized storage space

- according to your workshop and commonly used pipe products. We have designed a drawer tray or pulley support structure for storing

- materials at each storage position, which can slide smoothly. Helps our operators easily insert and remove any material. We have compared

- the convenience of this product. The entire access process requires only one operator in a safe and fast manner, with great flexibility in the

- case of individually packaged shipments or stored materials. Improve efficiency and reduce costs.

Advantages of honeycomb rack

- The honeycomb rack gives you instant access and offers you the perfect solution for the storage of tubes, bars, flat bars and/or angles.

- Fully customized with each application, the honeycomb rack is designed in modular construction, allowing it to be extended into unlimited adjustable slots.

- Feature:

- Modular construction, rack can be extend unlimited, easily increase storage slots.

- Convenient to classified and management of materials.

- Good base for creating a steel platform to increase storage space

- Compact storage capacity with big loading -standard loading 3tons per slot.

- Quickly access with a crane or forklift.

- Tray can be extracted 100% so that the storage goods can be fully accessed.

- Prevents damage to the sensitive material surfaces.

- Customized Products.

Electric Mobile Cantilever Racks

Cantilevers are widely recognized as being highly effective for storing long and difficult items. Mobile systems are widely recognized as being
highly effective for freeing up space and adding capacity. Put the two together, and you have the ultimate storage solution that maximizes every
centimetre of useable space.

Mobile cantilever racks are standard cantilever racks that are mounted on mobile galvanized trolleys. With no front uprights to obstruct load placing
and retrieval, Mobile Cantilevers need only one aisle open at a time using rails that are sunk into the floor. The trolleys are operated via an easy to use
control panel or remote control. With numerous user functions and customization, Mobile Cantilevers offer an excellent solution in many warehouse or
workshop environments.

Making cantilevers mobile saves space compared to standard cantilever racks, and can increase storage capacity by as much as 200%. Each mobile
cantilever rack can be made to measure or easily adjusted, taking into account your unique storage needs and the available space in your warehouse.

The Mobile Cantilever offers the following features and benefits as

1. Relatively cheap cantilever racks because standard components are used

2. Height-adjustable carrying arms

3. Increases the range of goods that can be stored

4. Save approx. 67% of the space required for static cantilever racks, increase the storage capacity by up to 200%

5. Wide variety of accessories

6 State-of-the-art technology for perfect support of optional functions and a touchscreen with clear graphic display for optimal visibility

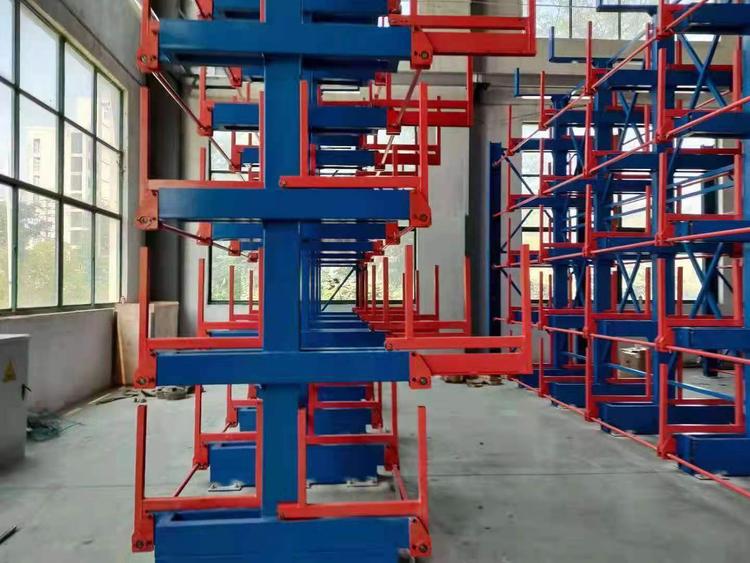

Telescopic Cantilever Rack

EBILTECH telescopic cantilever rack is based on ordinary cantilever racking, for the cantilever is endowed with free telescopic function, in access to

irregular or longer items (furniture, tubing lumber etc.), turn the winch, cantilever can be freely retracted, convenient for bridge crane operating.

1) Composite structure

2) Size and capacity can be fixed by users

3) Mainly used for storage of long, circular or irregular shaped goods

4) High quality steel, plastic sprayed surface and many colors optional

5) With specific advantages for storage of strip type cargoes, such as tubing and plate

6) According to loading capacity, it can be divided into single side cantilever rack and double-side cantilever rack

7) Cantilever racks are modularly designed and equipped with special upright shafts and high-tensile cantilevers, used primarily for storing long

profiles, tubes and pipes, and sheets.

8) Customized designs for sizes and loading capacity available

Main parts

The storage method for steel square tubes of different lengths, using telescopic cantilever rack for stacking steel on the ground, not only takes up
space, but also makes inventory inconvenient to count. It is also a waste of time and a safety issue for workers to access. Therefore, using telescopic
cantilever rack for storage management is a good storage management method. The hanging alarm of the shelves is adjustable, which is more
convenient for workers to access and operate compared to traditional cantilever racks. The racks themselves occupy a small area but have a large
storage capacity, A set can store dozens of tons, with more than ten storage locations to choose from .

Instructions for using hand cranked telescopic cantilever rack

Step 1: Gently shake the handle next to the rack, the cantilever will extend out of the rack and the goods placed on it will extend along with the rack.

Step 2: Each layer has a control handle, and you can shake the handle of the layer you want to pick up. The storage of goods alone is not affected;

Step 3: Use cranes, cranes, etc. to lift the goods on the rack, directly access them, and operate them by a single person, saving manpower;

Step 4: No need for additional vehicles or reserved alleyways, saving a lot of space for enterprises, especially suitable for small space storage.

Step 5: After storing and retrieving goods, shake the handle again, suspend and retract, storage speed is fast, time is saved, and safety is higher;

Cantilever Rack

Forklift-friendly Rack Systems

Cantilever racks are unique among racks in that they employ vertical supports at the rear of the rack only, with “arms” extending

from the columns at the back of the cantilever rack storage system to support loads.

The benefit of this configuration is wide-open access at the front of the rack for loading and storing a wide variety of long, bulky,

or awkward loads. The arms, which are available in a wide variety of styles and sizes, are easily reconfigured to make this an ideal

solution for storing items such as furniture and building materials utilizing a heavy-duty cantilever racking system to support the

weight of the items.

Cantilever steel storage racks can be used indoors or outdoors. With the addition of decking, cantilever rack storage can also provide

similar storage to pallet racking, with the advantage that, with no front column, there is easy access for loading and unloading as each

storage slot is immediately accessible. This can lower your handling time and costs. The arms provide adjustable rack openings that

easily accommodate various load dimensions.

The cantilever rack storage system easily stores:
