Pallet size: L1200XW1200XH1000; weight: 1000kg/pallet

Cargo space: 22 rows x 31 columns x 9 levels

Total storage: 6138 pallets

Floor area of rack: 43.5m long X 30m wide x 13m high

Workshop floor area: 58.5m long x 38m wide x 14m high.

Advantages and Characteristics

1. Modular design of equipment to achieve system automation;

2. Additional equipment in later stage, and expandable warehouse-in/out efficiency;

3. Out-of-stock mode: first in first out/first in last out;

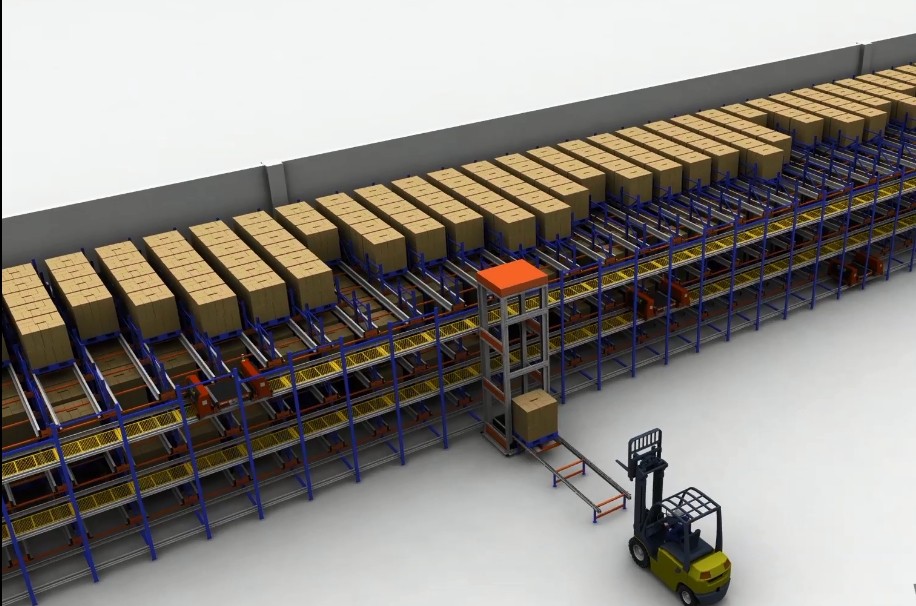

The Shuttle carrier solution is a full automatic and high density storage system which

takes the shuttle as a core, it is consist of radio shuttle racks, longitudinal movement

shuttle, lateral movement mother shuttle, vertical direction movement elevator, conveyor

lines and so on. According to practical application requirements, in-out stock can choose

the way of FIFO or FILO, shuttle and mother shuttle can one-to-one match or several-for-one

 match. With the adjustment of WMS, WCS, equipment scheduling soft management and

the whole system to suitable for the single variety and large scale situation, such as food,

drink, paper, etc.
